| 產(chǎn)品規(guī)格 | 1/4n~4"（DN6?100） |
| 工作壓力 | 0.6~0.8MPa |
| 螺紋端可按BSPT、BSP、NPT、DIN2999制造 | |
材料列表
部件名稱 | 材質(zhì) | ||
閥體 | WCB | CF8 | CF8M |
閥蓋 | WCB | CF8 | CF8M |
閥座 | PTFE | RPTFE | PTFE |
球 | SS304 | SS304 | SS316 |
密封墊 | PTFE | PTFE | PTFE |
桿密封 | PTFE | PTFE | PTFE |
閥桿 | SS304 | SS304 | SS316 |
防靜電裝置 | SS304 | SS304 | SS316 |
閥桿填料 | PTFE | PTFE | PTFE |
填料壓蓋 | SS202 | SS202 | SS202 |
彈性墊圈 | SS202 | SS202 | SS202 |
手柄 | SS202 | SS202 | SS202 |

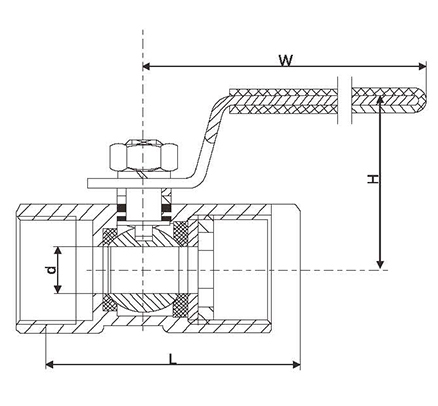

外形尺寸
NPS | DN | d | L | H | W |
1/4" | 6 | 5 | 40 | 22 | 80 |
3/8" | 10 | 7 | 44 | 26 | 80 |
1/2" | 15 | 9 | 51 | 31 | 88 |
3/4" | 20 | 12 | 55 | 34 | 88 |
1" | 25 | 15 | 67 | 38 | 105 |
1-1/4" | 32 | 20 | 70 | 43 | 105 |
1-1/2" | 40 | 25 | 80 | 50 | 124 |
2" | 50 | 32 | 93 | 57 | 124 |
2-1/2" | 65 | 38 | 112 | 89 | 180 |
3" | 80 | 50 | 133 | 102 | 190 |
4" | 100 | 65 | 190 | 120 | 215 |
